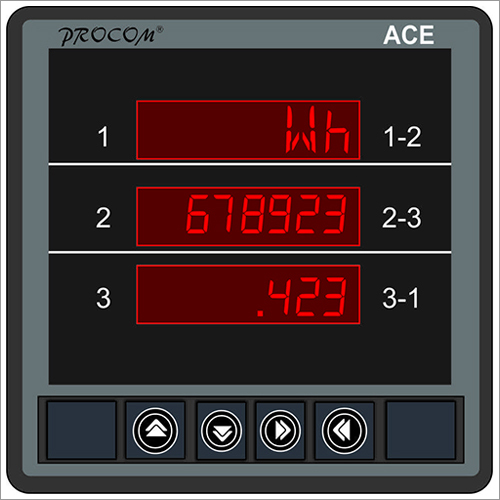

Multifunction Panel Meter

Multifunction Panel Meter
Multifunction Panel Meter
Product Code : ACE Series
Brand Name : MRM PROCOM
Product Description

Multifunction Panel Meter

Features

  • Simultaneous Display of Measured Quantity & Parameter
  • Trip Function enables user to have record of integration qty. from a selected time
  • Auto scaling of Kilo Giga, Mega and decimal Point
  • Password protection for user programmable parameters
  • Modbus Communication on RS - 485 (Optional)
  • Meter / Wiring configuration is field programmable as Star/ Delta/ Single Phase connection.
  • Accuracy Class 1.0 IEC 62053 - 21/ (Optional 0.5;O.2 IEC 62053-22)
  • Selectable auto & manual scroll of display
Specifications

Accuracy

Class 1.0 IEC 62053-21/(Optional0.5;0.2 IEC 62053-22)

Input Voltage

Vr, Vy, Vb, Vn

Input Voltage Range

18-520V (L-L)/ 10V-300V (L-N)

Isolation Voltage

2000V

Input Current

Ir, Iy, Ib

Input Current

50mA-6A (Accuracy range)

Starting Current

1-200mA (programmable)

CT Burden

0.2VA max. per phase

Current with stand

10A continuous, 50A for 1 Second

Input Frequency

40 to 70Hz

Auxiliary Supply

35-300V AC/DC

Auxiliary supply burden

<4VA

Display

3 Row 6 Digit (4 Alpha-numeric)

Display Scrolling

Automatic/Manual

Pulse Output Contact Rating

50mA (Optional, Max. Pulse width 250+-50ms 24VDC

Communication

Modbus Comm. on RS-485 (Optional )

CT Primary setting

1A to 999kA

CT Secondary setting

1A to 10A

PT Primary setting

50V to 999kV

PT Secondary setting

50V to 999 V
